product manual

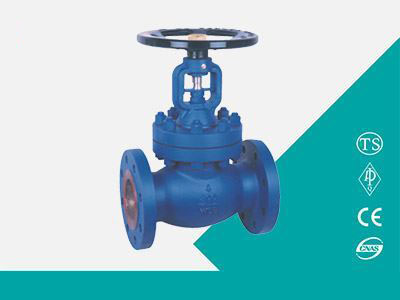

Bellow seal globe valve is suitable for cutting or connecting the pipeline medium in various working conditions of petroleum, chemical, pharmaceutical, chemical fertilizer, power industry and other pipelines with nominal pressure PN1.6 ~ PN4.0MPa and working temperature -20 ℃ ~ 350 ℃.
Structure and Use1. Reasonable product structure, reliable sealing performance, beautiful appearance;
2. Surfacing Co-based hard alloy on the sealing surface, wear-resistant, corrosion-resistant, good friction resistance and long service life;
3. Valve stem quenching and tempering and surface nitriding treatment have good anti-corrosion and anti-friction properties;
4. Double seal of right-angle German standard bellows globe valve, more reliable performance;
5. The valve stem lifting position indication is more intuitive;
6. The material of the parts, the size of the flange and the number of the butt welding can be reasonably selected according to the actual working conditions or user requirements to meet various engineering needs.
specifications
structure type | BB-BG |
Drive mode | Manual |
pneumatic |
design standards | DIN3356 |
Structure length | DIN3203 |
Connect the flange | DIN2543-2545 |
Test and inspection | DIN3230 |
Product parts materials
Serial number | name | Material |
1 | Body | GS-C25、CF8、CF3 |
2 | Disc | 2CR13、F304、F316 |
3 | Shaft pin | F304、F316 |
4 | Bellows assembly | F304、F316L |
5 | cap | GS-C25、CF8、CF3 |
6 | filler | Flexible graphite、PTFE |
7 | Pressure sleeve | 25#、F304、F316 |
8 | Positioning pieces | 25#、F304、F316 |
9 | Stem nut | Copper alloy ZQA19-4 |
10 | Handwheel | Carbon steel |
11 | And hat | 25# |
12 | Oil Cup | brass |
13 | Hex nuts | ASTMA193 2H、A193-8、A193-8M |
14 | Studs | ASTMA193 B7、A193-B8、A193-B8M |
15 | Gasket | Flexible graphite + stainless steel |
16 | Valve stem | 2Cr13、F3 |
Product appearance and structure size
Nominal diameter | The main dimensions and connection dimensions |
L | D | D1 | D2 | b | Z-d | H | D0 |
WJ41Y-16C |
15 | 130 | 95 | 65 | 45 | 14-2 | 4-Φ14 | 170 | 120 |
20 | 150 | 105 | 75 | 55 | 14-2 | 4-Φ14 | 190 | 140 |
25 | 160 | 115 | 85 | 65 | 14-2 | 4-Φ14 | 205 | 160 |
32 | 180 | 135 | 100 | 78 | 16-2 | 4-Φ18 | 270 | 180 |
40 | 200 | 145 | 110 | 85 | 16-3 | 4-Φ18 | 310 | 200 |
50 | 230 | 160 | 125 | 100 | 16-3 | 4-Φ18 | 358 | 240 |
65 | 290 | 180 | 145 | 120 | 18-3 | 4-Φ18 | 373 | 240 |
80 | 310 | 195 | 160 | 135 | 20-3 | 8-Φ18 | 435 | 280 |
100 | 350 | 215 | 180 | 155 | 20-3 | 8-Φ18 | 500 | 300 |
125 | 400 | 245 | 210 | 185 | 22-3 | 8-Φ18 | 614 | 320 |
150 | 480 | 280 | 240 | 210 | 24-3 | 8-Φ23 | 674 | 360 |
200 | 600 | 335 | 295 | 265 | 26-3 | 12-Φ23 | 811 | 400 |
250 | 650 | 405 | 355 | 320 | 30-3 | 12-Φ25 | 969 | 450 |
300 | 750 | 460 | 410 | 375 | 30-3 | 12-Φ25 | 1145 | 580 |
350 | 850 | 520 | 470 | 435 | 34-4 | 16-Φ25 | 1280 | 640 |
400 | 980 | 580 | 525 | 485 | 36-4 | 16-Φ30 | 1452 | 640 |
WJ41Y-25C |
15 | 130 | 95 | 65 | 45 | 16-2 | 4-Φ14 | 170 | 120 |
20 | 150 | 105 | 75 | 55 | 16-2 | 4-Φ14 | 190 | 140 |
25 | 160 | 115 | 85 | 65 | 16-2 | 4-Φ14 | 205 | 160 |
32 | 180 | 135 | 100 | 78 | 18-2 | 4-Φ18 | 270 | 180 |
40 | 200 | 145 | 110 | 85 | 18-3 | 4-Φ18 | 310 | 200 |
50 | 230 | 160 | 125 | 100 | 20-3 | 4-Φ18 | 358 | 240 |
65 | 290 | 180 | 145 | 120 | 22-3 | 8-Φ18 | 373 | 240 |
80 | 310 | 195 | 160 | 135 | 22-3 | 8-Φ18 | 435 | 280 |
100 | 350 | 230 | 190 | 160 | 24-3 | 8-Φ23 | 500 | 300 |
125 | 400 | 270 | 220 | 188 | 28-3 | 8-Φ25 | 614 | 320 |
150 | 480 | 300 | 250 | 218 | 30-3 | 8-Φ25 | 674 | 360 |
200 | 600 | 360 | 310 | 278 | 34-3 | 12-Φ25 | 811 | 400 |
250 | 650 | 425 | 370 | 332 | 36-3 | 12-Φ30 | 969 | 450 |
300 | 750 | 485 | 430 | 390 | 40-4 | 16-Φ30 | 1145 | 580 |
350 | 850 | 550 | 490 | 448 | 44-4 | 16-Φ34 | 1280 | 640 |
400 | 980 | 610 | 550 | 505 | 48-4 | 16-Φ34 | 1452 | 640
|
